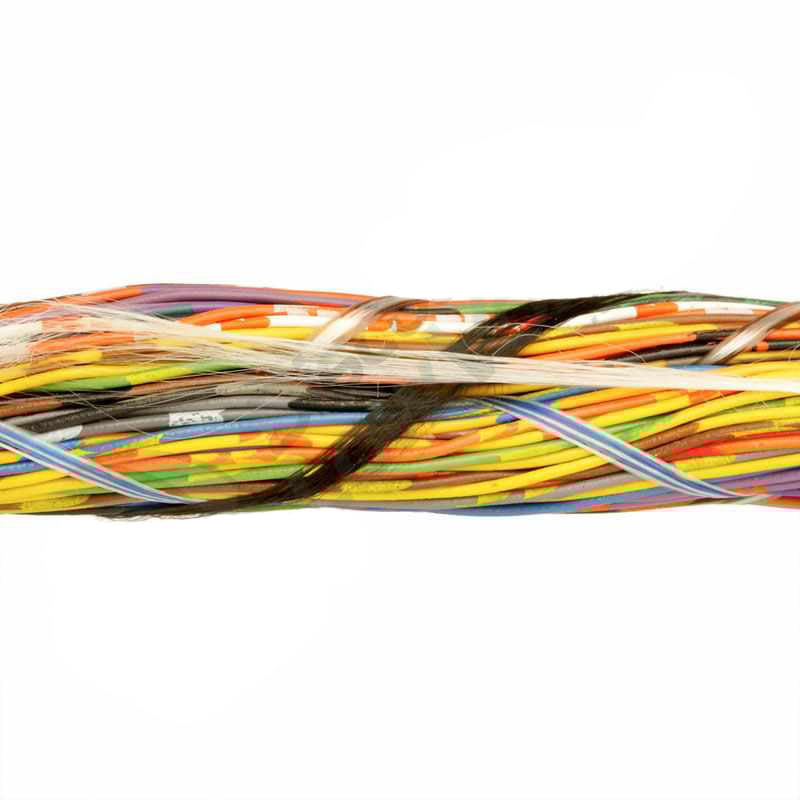

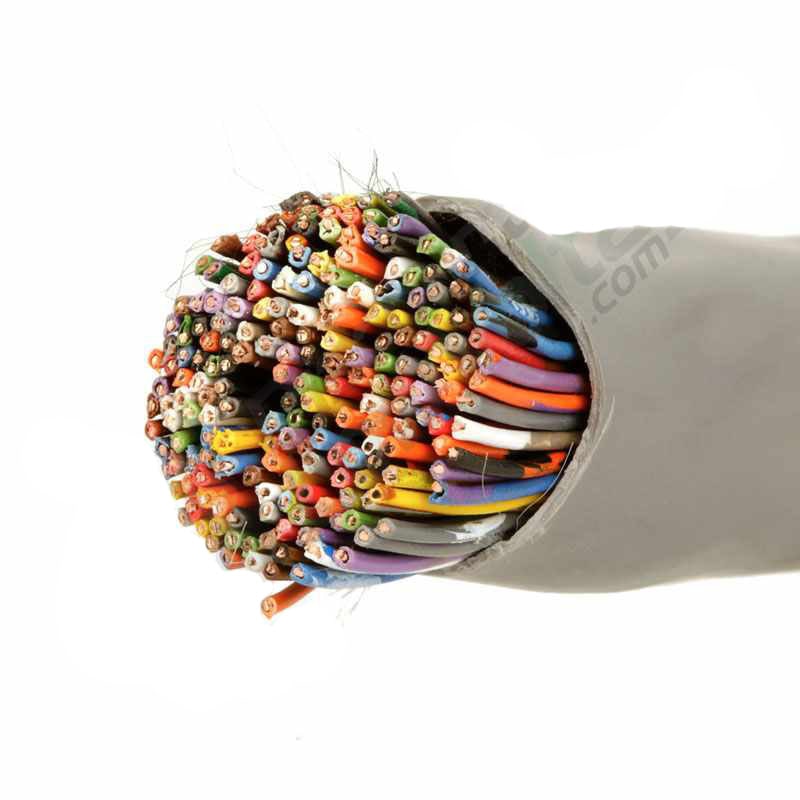

Comtran 100 Pair Telephone Cable Cat 3 PVC/CMR Gray (per foot) * Currently Limited to the Quantity on Hand *

$8.50
Reference#: 68318
Item#: CT-33574



Description

* This cable is currently limited to the available quantity on hand. *

UTILITY
Perennially popular for its build quality, color coding and compact package, the Comtran 100-Pair Cat 3 PVC 24AWG Cable from Discount Low Voltage is made in the U.S. That means it qualifies for all product-origin specific U.S. federal government sales requirements. The dark color coding makes for easy punch-down even in low-light conditions.
AVAILABILITY
This product is suitable for voice T1 4Mbps token ring (IEEE 802.5), 10 Base-T (IEEE 802.3) and 52 Mbps ATM VG-AnyLAN ISDN.
·Weight: 375 lbs. per 1,000 ft.
·UL listed type MPR/CMR TIA 568-B.2 Category 3 (4 pair verified UL and ETL)
·Structural Return Loss: 12dB (min) from 1.0-10.0 MH 12-10 log (f/10) from 10.0-16.0 MHz
Qualified orders of $200 or more qualify for free shipping, which normally takes two to five business days. Other options are available for quicker shipping.
VALUE
Whether you need 100 ft telephone cord or some other quantity, you can get exactly what you need with this product, which we sell by the foot. We will cut it exactly to the length you specify, meaning no waste. Quantity discounts are available for this cable, saving you even more for big jobs. Questions? Just ask us! Call our toll-free telephone number during normal business hours for expert advice.
USA Made!

Features

The color coding is very dark and easily distinguished to make for easy punch down, even in low light conditions. Over the years, this has been the best brand we have sold, due to the build quality, color coding, and compact packaging.

This item is cut to length. Price is per foot.

Please note that this item is very heavy. Our online shopping cart will not be able to figure shipping charges if the length requested is over 150lbs. If you require a shipping estimate that the cart software is not able to provide, please contact us for a quote.

What is Riser Cable (CMR)? Sometimes referred to as PVC.

NOTE: Not all PVC Cable is necessarily Riser rated

Cable which is to be run between floors in non-plenum areas is rated as RISER cable. The fire requirements on riser cable are not as strict. Thus, plenum cable can always replace riser cable, but riser cable cannot replace plenum cable in plenum spaces. Twisted-pair, coaxial,HDMI and DVI versions of cable are made in plenum and riser versions.

Specification

Suitable for: Voice T1 4Mbps Token Ring (IEEE 802.5) 10 Base-T (IEEE 802.3) 52 Mbps ATM VG-AnyLAN ISDN

Weight: 375lbs per 1,000ft

Compliances: UL Listed Type MPR/CMR TIA 568-B.2 Category 3 (4 pair verified UL and ETL)

Insulation: Semi-rigid PVC Jacket: Flame Retardant Chrome Gray PVC with sequential footage markings Ripcord: Applied longitudinally under jacket Operating Temperatures: -10c to +60c Voltage Rating: 300 volts Conductors: Solid bare copper

Electrical Characteristics DC Resistance (max) 9.38 Ohms/100m @ 20C Mutual Capacitance (nom) 18 pF/ft @ 1 kHz Characteristic Impedance 100 +/- 15 Ohms from 1.0-16.0 MHz

Structural Return Loss (SRL): 12dB (min) from 1.0-10.0 MHz 12-10 log (f/10) from 10.0-16.0 MHz
