AFL CT08 Fiber Cleaver *Discontinued and replaced by AF-CT16 *

This item has been discontinued and replaced with the CT16 Cleaver.

Order the new CT16 here: AFL CT16 Fiber Optic Cleaver

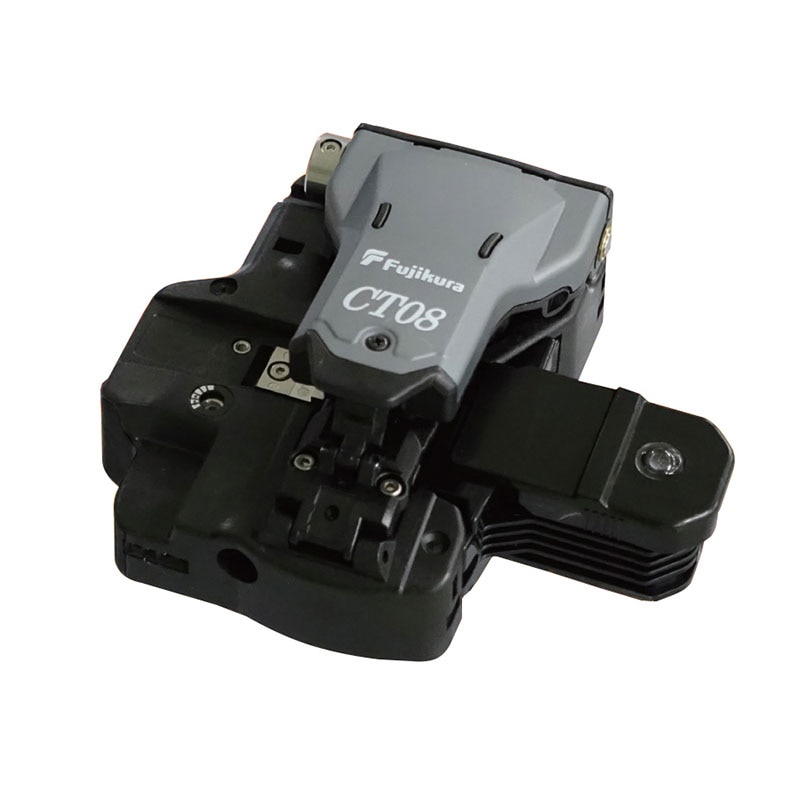

The CT08 fiber cleaver is an extremely rugged, durable, and easy to use single fiber cleaver. Ideal for FTTH applications, the CT08 provides unmatched levels of impact resistance and also eliminates the requirement for tools during blade rotation. A thumbwheel on the bottom of the cleaver is utilized for blade rotation, and the blade position indicator has been relocated to enable quick and easy viewing. The top clamp opens to a position past vertical allowing for easy viewing, cleaning, and adjustment of the cleave length. The blade is retracted automatically when opening the top clamp and is activated upon closing, making this a true one-step cleaver. The cleaver blade and fiber clamping mechanism is extremely easy to replace in the field. A manual scrap collector is included.

CT08 Includes:
AD-50 Adapter Plate
CC-34 Carrying Case
Hex Wrench
Scrap Collector
Instruction Manual

• Dedicated for single fiber cleaving
• Ruggedized design withstands extreme shock levels
• Tool free blade rotation
• Simple one-step operation
• Blade life of 48,000 cleaves
• Blade and clamp/anvil assembly are field serviceable

Applicable Fiber: Conventional silica optical fiber
Fiber Count: Single fiber
Coating Diameter: 0.25 to 0.9 mm
Cladding Diameter: 125 µm
Cleave Length: 5-20 mm with AD-50 adapter plate and 10 mm when using fiber holders
Cleave Angle Capability: Typical 0.5˚
Dimensions: 110(W) x 95(D)x 45(H) mm
Weight: 185 g (0.41 lbs)
Blade Lifetime: 48,000 fibers (1,000 fibers x 3 heights x 16 positions)
