* DISCONTINUED * Corning TKT-UNICAM-PFC2 Unicam High Performance Fiber Optic Toolkit 2
Item#: COR-TKT-UNICAM-PFC2
Description
This item has been discontinued. We recommend the TKT-UNICAM-PFC Tool Kit as an alternative.
The Corning TKT-UNICAM-PFC2 UniCam high-performance toolkit 2 was developed to reduce the amount of time required to terminate a single connector and to provide operational feedback and guidance throughout the termination process.Termination speeds are 25 percent faster by reducing the number of steps in the termination process. Installation of an LC, SC or ST compatible connectors can be accomplished in 45 seconds with the UniCam high-performance toolkit 2 (TKT-UNICAM-PFC2). Every Corning UniCam Connector is guaranteed to meet the published performance specification at the time of installation.

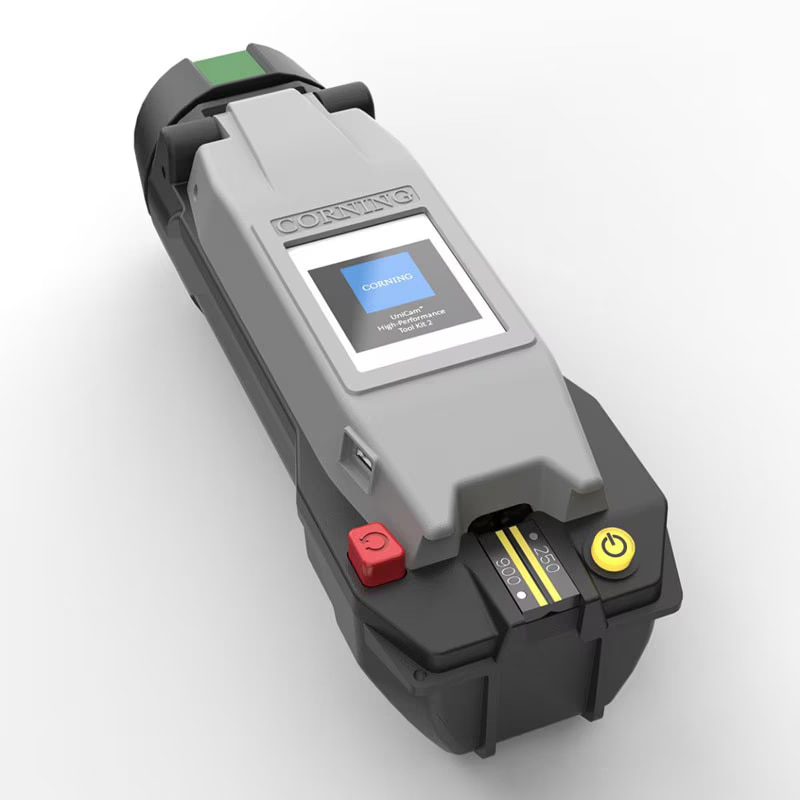

The UniCam high-performance installation tool 2 is also an intelligent tool that provides step-by-step guidance throughout the termination process, but is also capable of detecting missteps and providing guidance on how to correct them. Guidance is provided via an integrated LCD screen, featuring Corning's Gorilla Glass, using animated videos detailing the termination process. An additional 7-in LCD video panel is integrated into the kit providing guidance for other process steps such as fiber preparation, cleaving and maintenance.

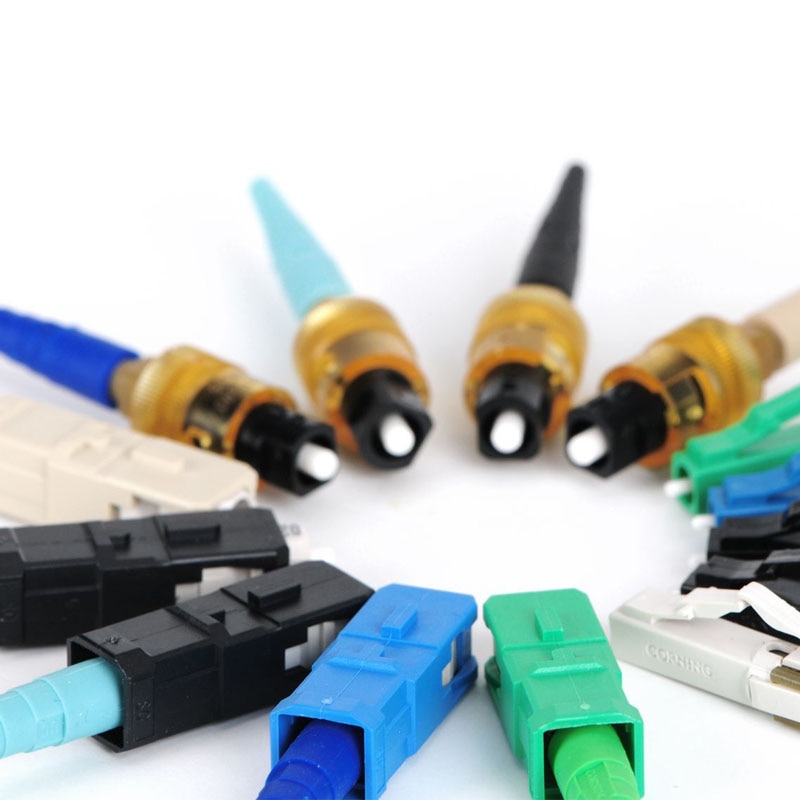

Connector loading is simplified courtesy of a new purple handler that ensures proper loading orientation and the transition between SC/ST to LC connectors is accomplished by simply rotating the VFL adapter either left or right. The new installation tool can be powered by two AA batteries or by a mini USB port located on the lid (cable included). The installation tool also notifies you when maintenance is needed, tells you how to perform maintenance, and when the tool is out of its operating temperature range.

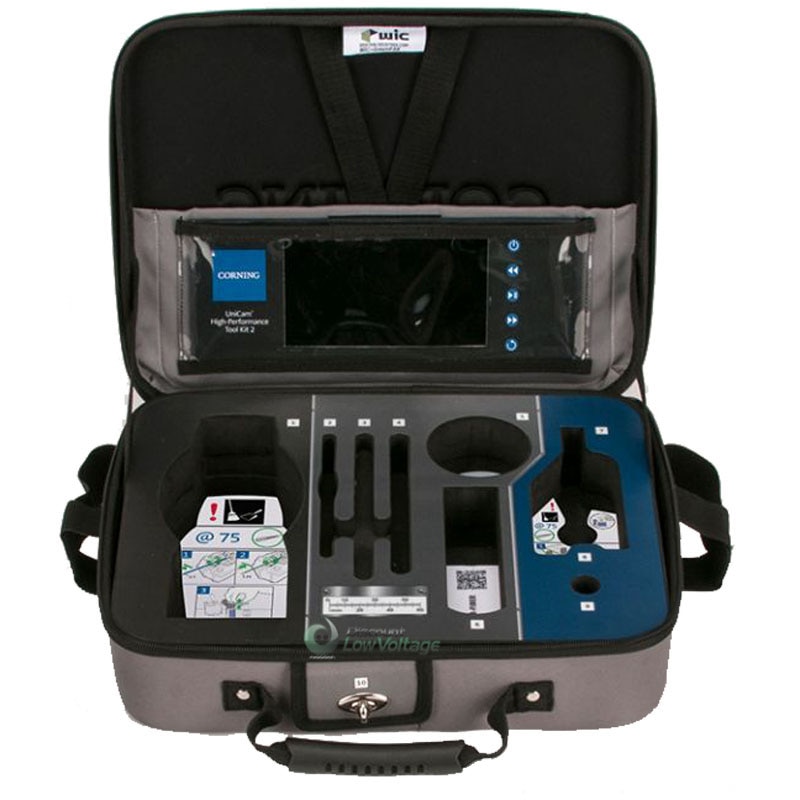

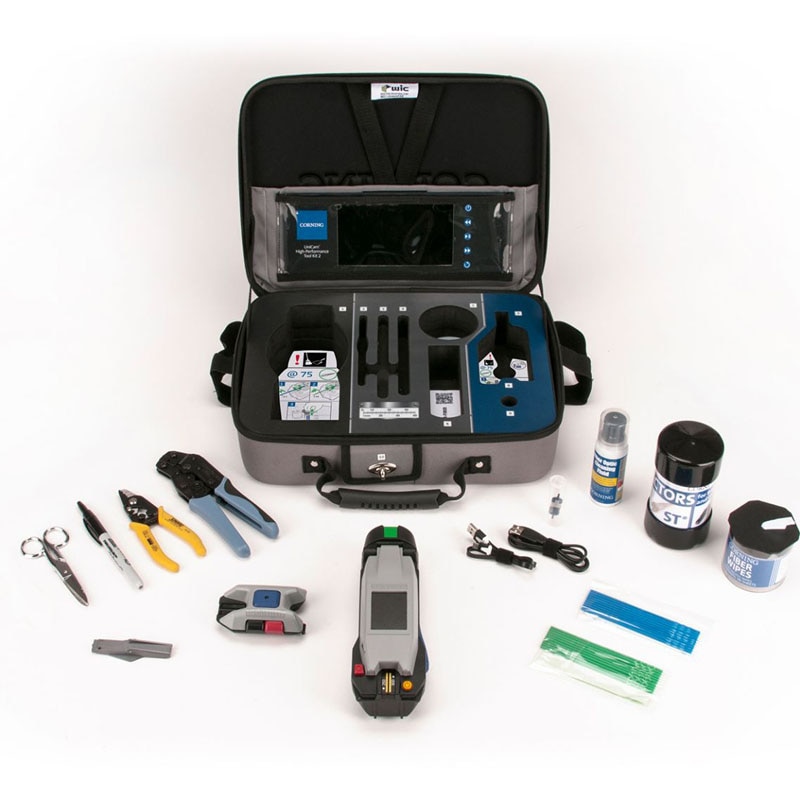

TKT-UNICAM-PFC2 Kit Contains:
- UniCam high-performance installation tool 2
- Precision flat fiber cleaver
- Crimp tool
- 7-in LCD video panel
- Fiber preparation tools and fiber cleaning tools
Features
45 percent fewer termination steps
Faster termination speeds
Two integrated LCD video panels
Step-by-step installation instructions
Operational feedback and corrective guidance
Fewer installation errors
Customizable features
Modify screen brightness, maintenance cycle duration, auto shut-off
UniCam Connector flat cleaver (FBC-007)
Simple operation and superior cleave quality
Remote software updates
Easily update tool software in the field
UniCam Connector flat cleaver (FBC-007)
Simple operation and superior cleave quality
UniCam Connector flat cleaver (FBC-007)
Simple operation and superior cleave quality
Specification
Technology
No-epoxy/no-polish
Compatibility
LC, SC and ST compatible
Weight
3.54 kg (7.8 lb)
Dimensions (HxWxD)
10.8 cm x 38.7 cm x 30.5 cm (4.25 in x 15.25 in x 12 in)
Chemical Characteristics
RoHS Free of hazardous substances according to RoHS 2011/65/EU
