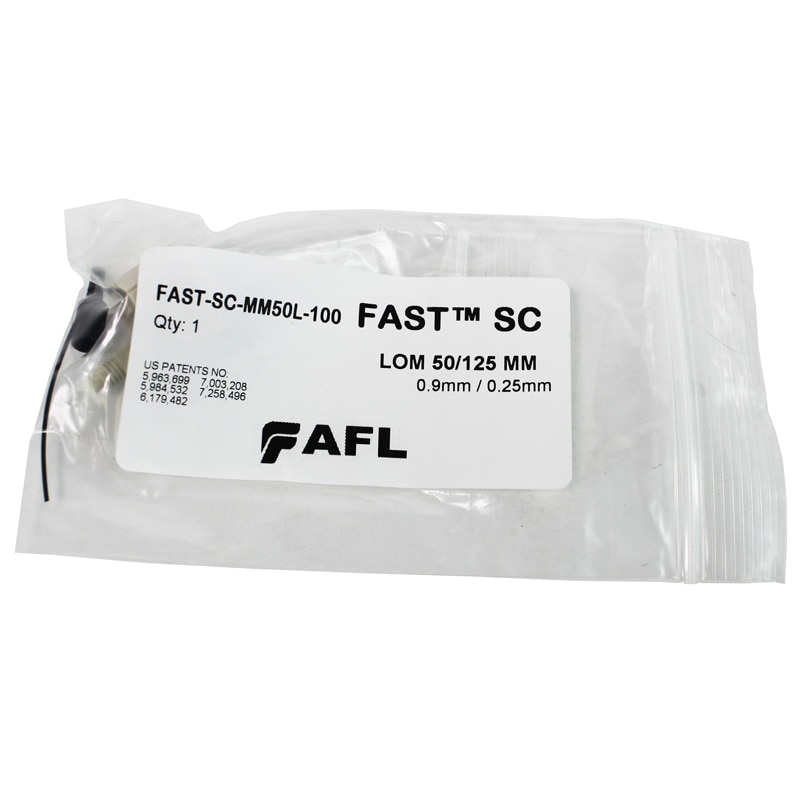

AFL SC 50/125 Multimode OM3/OM4 10Gig Laser Optimized FASTConnect Fiber Connector (sold individually)

$11.40
Reference#: 76546
Item#: AF-FAST-SC-MM50L



Description

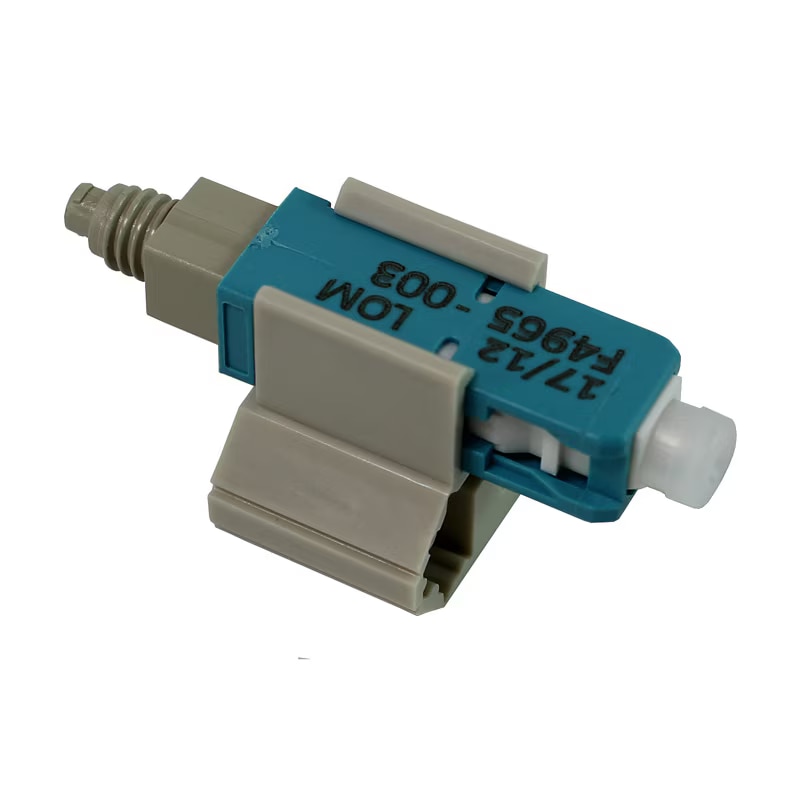

AFL FAST SC Connectors are factory pre-polished, field installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.

FAST Connectors are compatible with 250µm and 900µm optical fibers, as well as 2mm and 3mm cordage (2mm and 3mm boots sold separately). All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.
The AFL HiLite Visual Fault Finder is recommended for use during installation of AFL fiber connectors.

Optional 2mm and 3mm Boots:
2mm Fiber Boots
3mm Fiber Boots

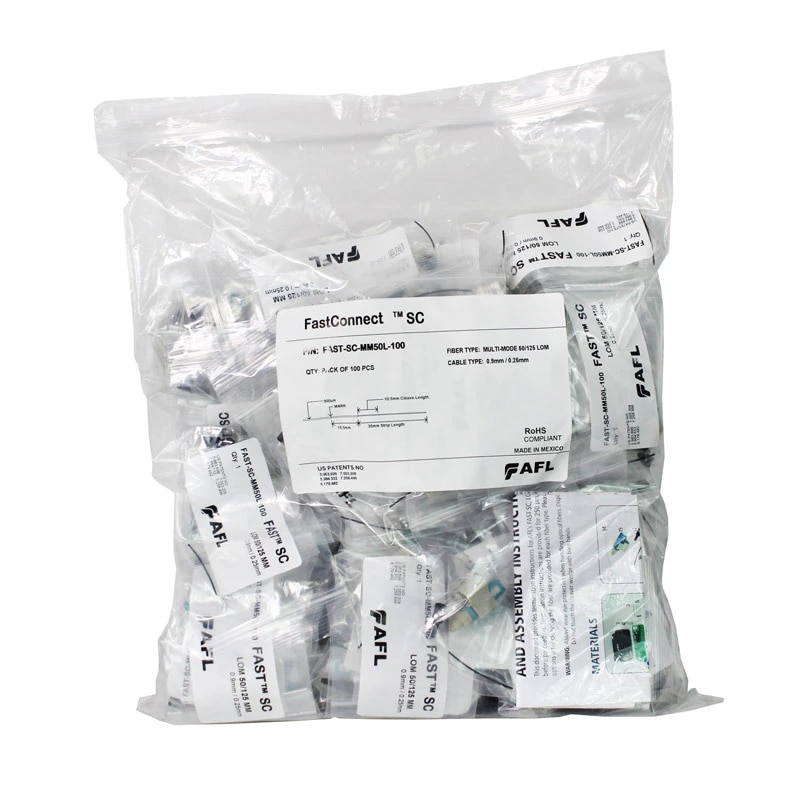

These connectors are available in 6 packs here: AFL FAST-SC-MM50L-6 Fiber Connectors

Features

  • Minimal tooling required
  • Installs in minutes
  • Pre-stubbed, factory-polished ferrule
  • No epoxy required
  • Precision mechanical alignment insures low loss
  • Fiber can be reseated
  • 900µm boot provided with each connector (2mm and 3mm boots sold separately)
  • VFI can be used to confirm fiber is installed properly
  • Meets TIA/EIA 568A performance requirements
  • Meets TIA/EIA 604 (focis) connector interface requirements
