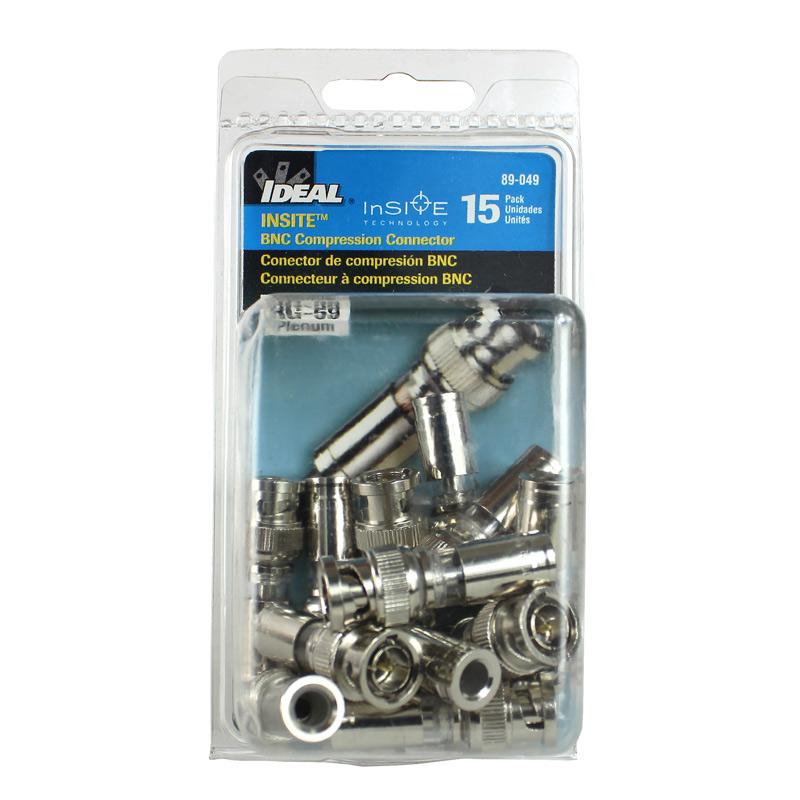

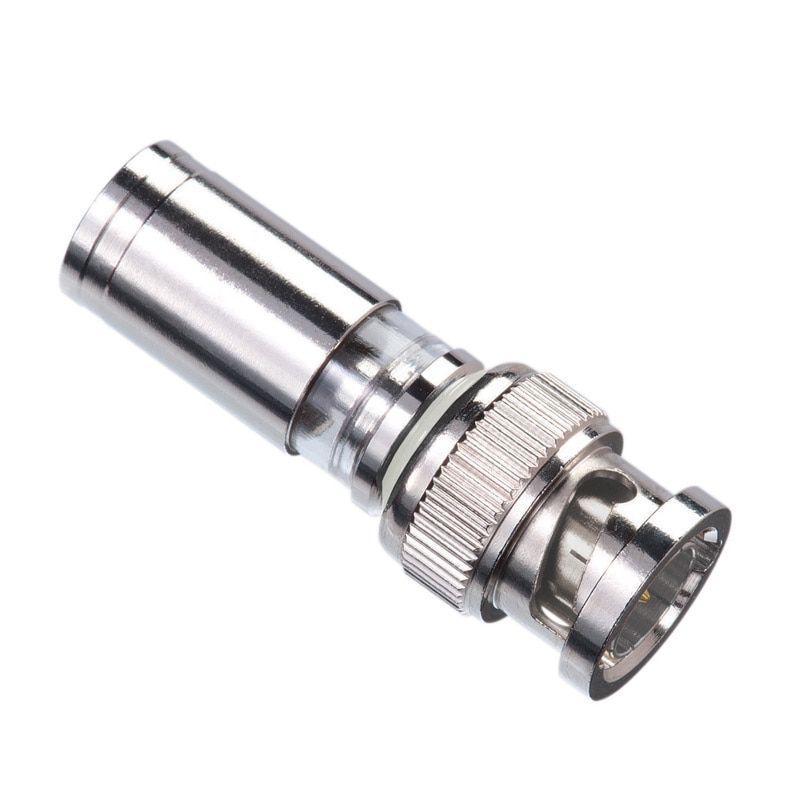

Ideal 89-049 BNC Compression Connector RG59 Plenum

$3.80
Reference#: 76467
Item#: ID-89-049



Description

InSite technology gives installers a large, 360 visual indication that the coax cable has been correctly and completely inserted. Nickel-plated, brass-construction for superior corrosion resistance. Moisture-inhibiting design. Approved for indoor and outdoor use.

Features

  • InSite technology gives installers a large, 360 visual indication that the coax cable has been correctly and completely inserted
  • Nickel-plated, brass-construction for superior corrosion resistance
  • Moisture-inhibiting design
  • Approved for indoor and outdoor use

    • Specification

  • Accepts RG-59 plenum coax
  • Center conductor range: 23-18 AWG Solid (.023” - .040”)
  • Dielectric diameter range: .134” - .140”
  • Outer jacket diameter range: .193” - .224”

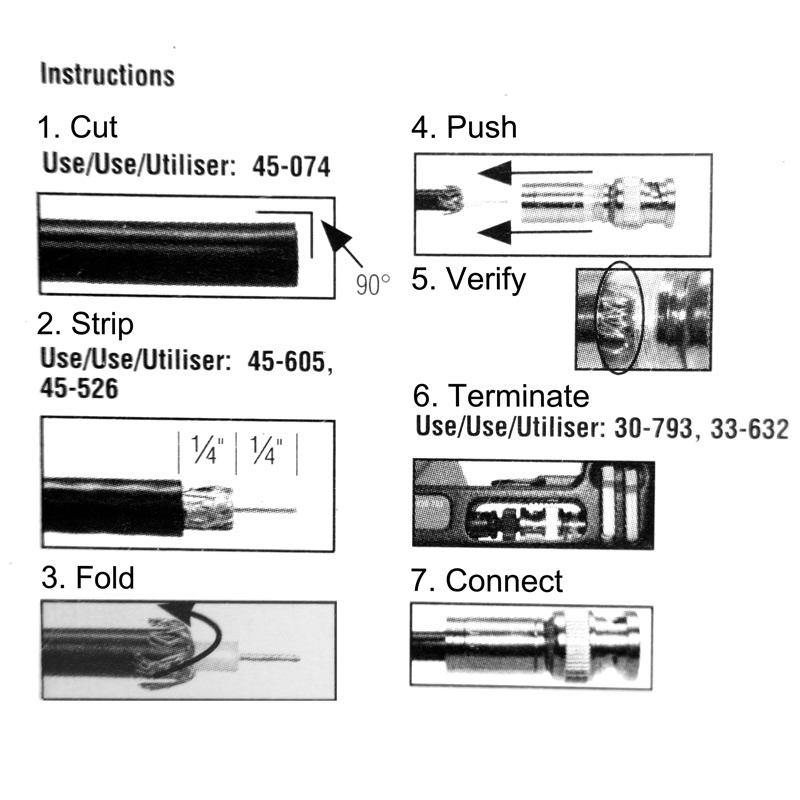

  • Recommended cable prep/stripping tools: 45-605 PrepPRO
  • Recommended compression tools: 30-793 OmniSeal PRO XL; 33-632 Linear X3
