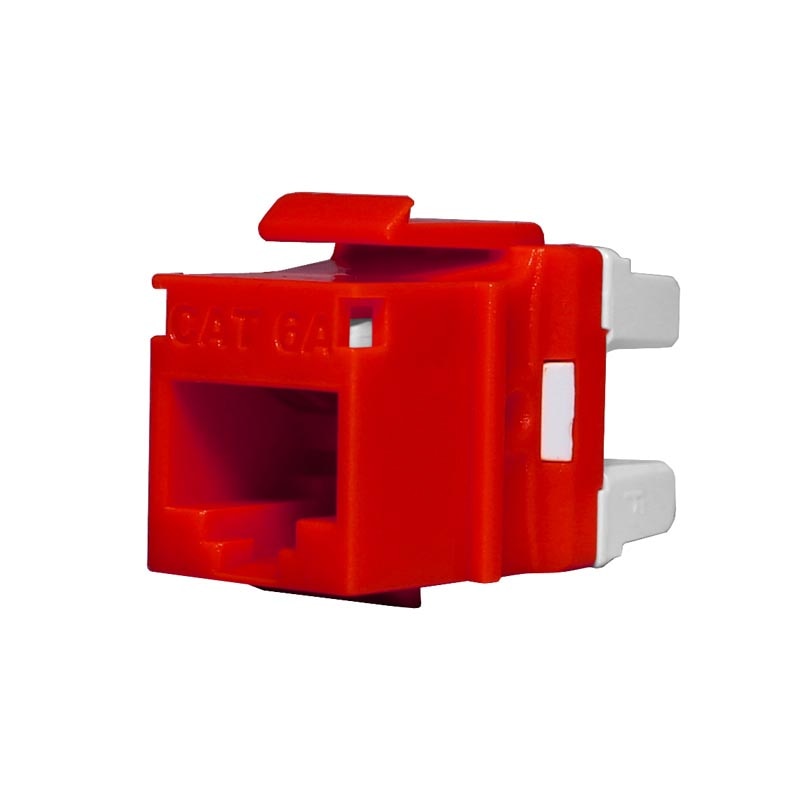

Signamax Cat6A MT Series Jack - RED
$6.45
Reference#: 71625
Item#: KJ458MT-C6AC-RD
Item#: KJ458MT-C6AC-RD
Description
Category 6A unscreened high-density keystone jacks have been designed to meet the need for today's high-bandwidth applications. Category 6A connectors are slim in profile for the highest density applications, and are engineered to exceed all ANSI/TIA-568-C.2 category 6A requirements.
Jacks support both T568A and T568B wiring schemes for maximum flexibility using an easy-to-read color-code wiring label. Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool. The connec-tors contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of system reliability.
Jacks support both T568A and T568B wiring schemes for maximum flexibility using an easy-to-read color-code wiring label. Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool. The connec-tors contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of system reliability.
Features
* Guaranteed to meet or exceed TIA-568-C.2 component performance
* Rated for at least 750 plug insertions providing for the highest level of system reliability
* Supports TIA-568-C.2 category 6A 100-meter channel performance
* Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
* Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port

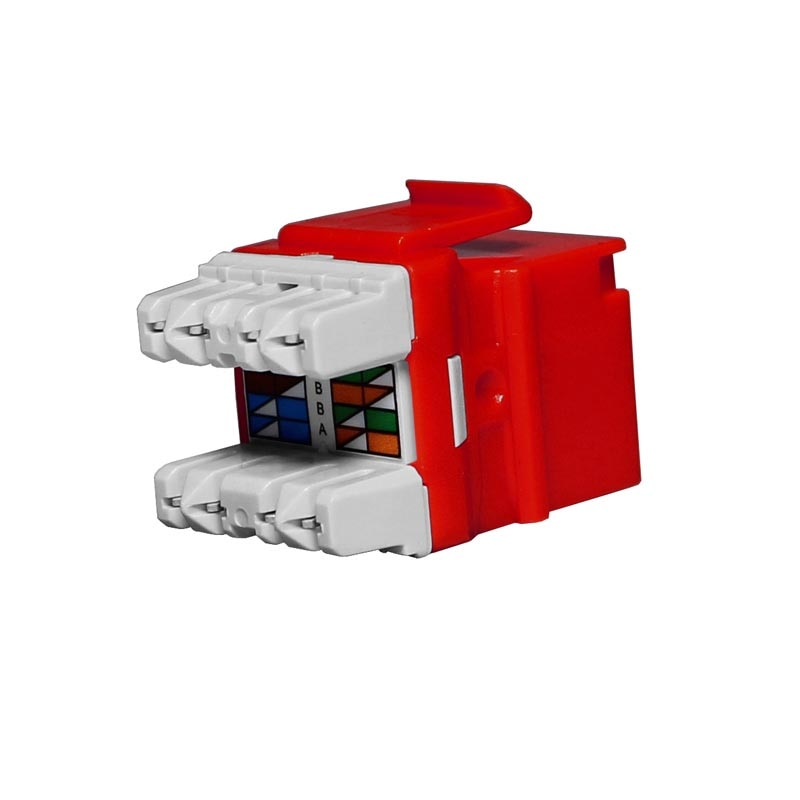

* T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility
* 180° high density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels
* Have an ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks form dust and other contaminants
* Rear 110 type contacts provide improved wire retention and ease of termination
* Terminated with standard single-position 110 or Signamax four-pair termination tools
* Rated for at least 750 plug insertions providing for the highest level of system reliability
* Supports TIA-568-C.2 category 6A 100-meter channel performance
* Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
* Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port
* T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility
* 180° high density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels
* Have an ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks form dust and other contaminants
* Rear 110 type contacts provide improved wire retention and ease of termination
* Terminated with standard single-position 110 or Signamax four-pair termination tools
