Specified Technologies STI FSR100 1" Split Firestop Sleeve Kit
Item#: FSR100
Description
Ready® Sleeve convenience for existing cable installations. These split firestop sleeve and two-piece wall plates allow the sleeve to be assembled around cables and locked into the wall or floor. Part # FSR100 is a 1" (33 mm OD) firestop sleeve.
The READY-SLEEVE™ Split Sleeve kits are designed for existing cable installations. The split sleeves are easily installed around an existing cable bundle. Two-piece split plates and gaskets capture the sleeve and lock it tightly to the barrier. All three sizes include a rolled lip for optimum cable protection.

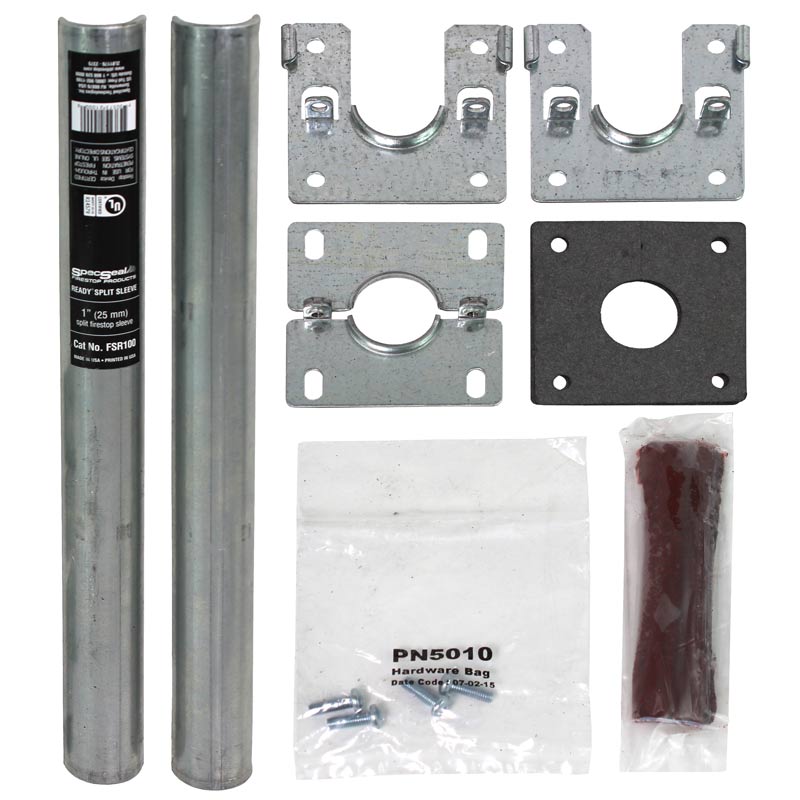

SpecSeal® READY-SLEEVE™ firestop pathway kits are complete UL Classified solutions for new and existing cable penetrations through walls and floors. Each sleeve kit contains:
• Precut Metallic Sleeve
• Mounting Escutcheons Plates
• Intumescent Escutcheon Gaskets
• Wall Warning Labels
• Putty Required to Seal Both Ends
Common Applications:
• New or existing cable installations through walls or floors
• All common constructions up to 10" (250 mm) thick
• Oversized or irregular openings
Features
• Over-sized plates for larger or irregular openings
• Built-in bushings protect cables
• Meets code requirements for internal/external firestop sealing
• Optional wall attachment points provided for sleeve stabilization
• Includes SpecSeal® Firestop Putty as well as split external firestop gasket
Specification
Sleeve and Plate:
Construction: 0.059" (1.5 mm) thick steel (zinc plated)
Intumescent Gasket:
Expansion Temperature: 350˚F (177˚C)
Volume Expansion: 15x (free expansion)
In Service Temperature: -10˚F (-23˚C) to 120˚F (49˚C)
Storage Temperature: Less than 1200F (490C)
Putty Fill Material: SpecSeal® Firestop Putty
Color: Red
Odor: None
Solids: 100%
Expansion Temperature: 230˚F (110˚C)
Volume Expansion: 8x (free expansion)
In Service Temperature: -10˚F (-23˚C) to 120˚F (49˚C)
Storage Temperature: L ess than 1200F (490C)
VOC Content: 0.00 lbs/gal (0.0 g/L)
Shelf Life: No Limit
